- Motor: 120V AC, 9 Amps.
- Motor Speed (RPM): 5,100/min
- Dust Port: 1-1/4 in.
- Blade Arbor: 5/8 in.
- Blade Diameter: 7-1/4 in.
- Cutting Capacities:
- Baseboard lying flat 4-1/4 in.
- 90º miter cut 1-1/2 in. x 4-1/4 in.
- 45º bevel cut 1-1/2 in. x 3-1/2 in.
- 45º miter cut 1-1/2 in. x 3 in.
- Tool Weight: 19 lbs.

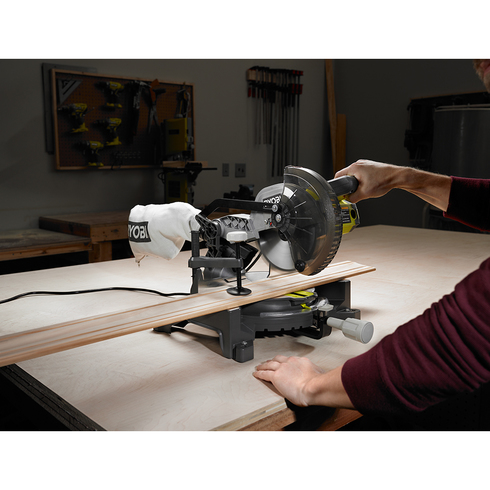

RYOBI 7-1/4 in. Compound Miter Saw
Model: #TS1144 | Home Depot Sku #: 1003896314
RYOBI introduces the 7-1/4 in. Compound Miter Saw. This saw is compact and lightweight, making it portable and perfect for DIY jobs around the house. The heavy-duty 9 Amp motor delivers up to 5,100 RPM for the power to make difficult cuts or a variety of small cuts in wood. It features a 1-1/4 in. dust port to help keep your work area clean. The 24-tooth Carbide-Tipped blade provides improved performance for fast, clean cuts on boards as large as 2 in. X 4 in. with a 4-1/4 in. cross cut capacity. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 7-1/4 in. Miter Saw includes a 24-tooth Carbide Tipped Blade, a blade wrench, a dust bag, a work clamp, and an operator’s manual.
- 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
- Up to 2 in. x 4 in. cutting capacities and 4-1/4 in. cross cut capacity
- Miter stops located at the most common angles 0º, 15º, 22.5º, 31.6º and 45º left and right for quick cut settings
- 24-tooth Carbide-Tipped blade for improved performance for fast, clean cuts
- Adjustable bevel from 0º - 45º with adjustable positive stops at 0º and 45º
- Spindle lock for easy blade changes
- Extended miter range from 47º left and right for a wide variety of cuts
- Machined and cast miter scale for accuracy
- TS1144 Compound Miter Saw with 24T Carbide-Tipped Blade
- Blade Wrench
- Dust Bag
- Work Clamp
- Operator's Manual
Click the link below to access power tool replacement parts schematics and order parts online.
For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.Visit Ryobi Power Tools Parts Store
