2 Peak HP Plunge Router

Model: #RE180PL1G | Home Depot Sku #: 192070

Large d9388b29 fac7 4691 b624 7334fc037e85
Large 8cb62c66 1f0e 4606 973a 8b7094fcf247
Large 2c0210dc b3f4 4d72 9005 dcab2e36f2e4
  • Tiny d9388b29 fac7 4691 b624 7334fc037e85
  • Tiny 8cb62c66 1f0e 4606 973a 8b7094fcf247
  • Tiny 2c0210dc b3f4 4d72 9005 dcab2e36f2e4

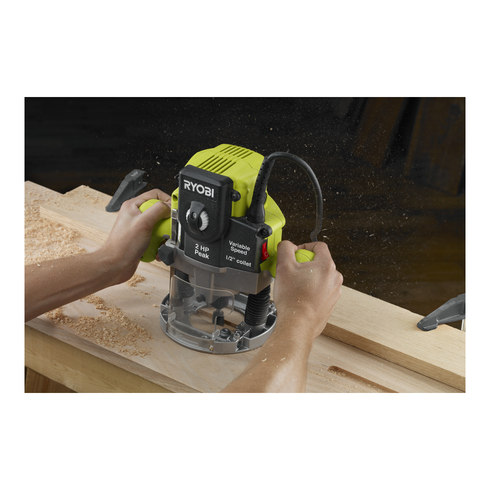

Introducing the RYOBI 2 HP Plunge Router. This tool features a 2 HP, 10-Amp variable-speed motor that lets you match speed to the bit you're using for versatility. This router features SOFT START™ variable speed allowing for up to 25000 RPM. The 2 HP Plunge Router also features micro-adjustment and accepts a variety of router bits.


Product Videos

×
Features
Specs
Includes
Reviews
Manuals
Parts
List a8ab84ea 6f96 42ec 9b7c 60234cad6090
  • 1/2 in. collet with 1/4 in. adaptor accepts a variety of bits to fit most woodworking needs
  • SOFT START™ electronic variable speed from 15,000 – 25,000 RPM
  • ACCU-STOP™ micro-adjustable depth stop easily adjusts cutting depth
  • Ergonomically-designed handles reduce user fatigue and chip shield for user protection
  • Spindle lock allows easy one wrench bit changes
  • Motor: 120V AC, 2 Peak HP, 10 AMP
  • No Load Speed: 15,000-25,000 RPM (No Load Speed)
  • Collet Size: 1/2 in. with 1/4 in. adaptor
  • Plunge Depth: 0–2 in.
  • Weight: 8.5 lbs.
  • RE180PL1G Router
  • 1/2 in. Collet
  • 1/4 in. Adaptor
  • Operator’s Manual

Plunge Base Router - Model re180pl1, re180pl1g


Re180pl1 448 trilingual 06
RE180PL1_448_trilingual_06.pdf
Published: 07-31-2018
Filesize: 1.06 MB


Re180pl1 448 r
RE180PL1_448_r.pdf
Published: 05-27-2014
Filesize: 299 KB


Re180pl1g 448 r 02
RE180PL1G_448_r_02.pdf
Published: 09-24-2014
Filesize: 367 KB


Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
