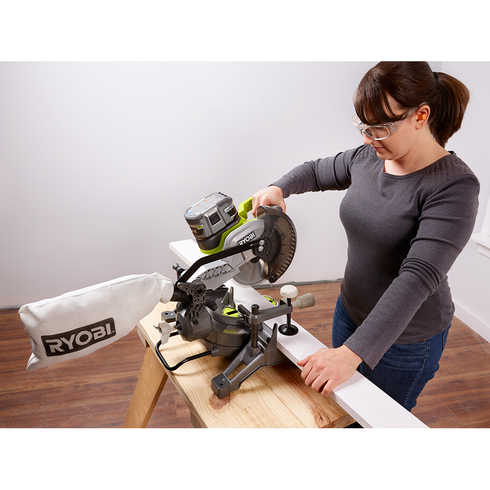

RYOBI introduces the 7-1/4 in. Cordless Miter Saw. This saw is compact, lightweight, and perfect for small projects around the house or punch list items on the jobsite. When paired with a P194 LITHIUM+™ HP high capacity battery it can deliver up to 900 cuts per charge! Backed by the RYOBI 3-Year Manufacturer’s Warranty, this saw includes a 24T Carbide-Tipped Blade, Blade Wrench, Dust Bag, Work Clamp and Operator’s Manual.

Features
Specs
Includes
Reviews
Manuals
Parts
List 39fcef1a 1542 4e6e a5b2 7e1bfda323ae
  • 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
  • Up to 2x4 cutting capacity and 4-1/4 in. cross cut capacity
  • Miter stops located at the most common angles for quick cut settings: 0º, 15º, 22.5º, 31.6º and 45º left and right
  • 24-tooth Carbide-Tipped blade improves performance with fast, clean cuts
  • Adjustable bevel from 0º – 45º with adjustable positive stops at 0º and 45º
  • Spindle lock for easy blade changes
  • Extended miter range from 47º left and right for a wide variety of cuts
  • Machined and cast miter scale for accuracy
  • Battery: 18V (not included)
  • Motor Speed (RPM): 4,000/min
  • Dust Port: 1-1/4 in.
  • Blade Arbor: 5/8 in.
  • Blade Diameter: 7-1/4 in.
  • Cutting Capacities:
    • Baseboard laying flat: 4-1/4 in.
    • 90º miter cut: 1-1/2 in. x 4-1/4 in.
    • 45º miter cut: 1-1/2 in. x 3 in.
  • Tool Weight: 19 lbs.
  • P553 Compound Miter Saw
  • 24T Carbide-Tipped Blade
  • Blade Wrench
  • Dust Bag
  • Work Clamp
  • Operator’s Manual

7-1/4 in. (184 mm) Cordless Compound Miter Saw - Model p553


P553 704 trilingual 02
P553_704_trilingual_02.pdf
Published: 12-14-2018
Filesize: 38.3 MB


P553 704 r 02
P553_704_r_02.pdf
Published: 01-29-2019
Filesize: 544 KB


Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
