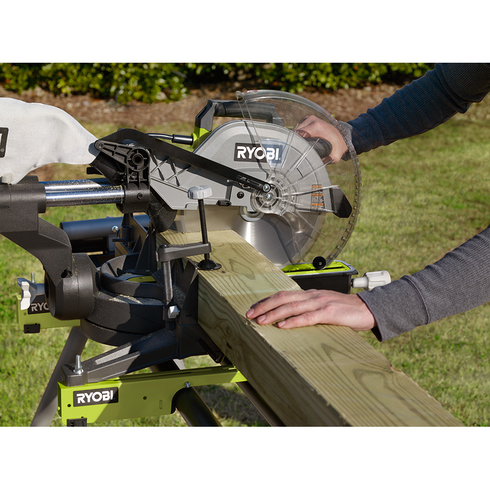

12 in. Sliding Compound Miter saw with LED

Model: #TSS121 | Home Depot Sku #: 1003853454

RYOBI introduces the 12 in. Sliding Miter Saw with LED. The heavy-duty 15 Amp motor delivers up to 3,800 RPM for the power to make difficult cuts. It features a 1-1/4 in. dust port to help keep your work area clean. The 24-tooth Carbide-Tipped blade provides improved performance for fast, clean cuts and an LED Cutline Indicator for higher accuracy. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 12 in. Sliding Miter Saw with LED includes a 24-tooth Carbide Tipped Blade, table extensions, a blade wrench, a dust bag, a work clamp, and an operator’s manual.

Features
Specs
Includes
Reviews
Parts
  • Heavy duty 15 Amp motor to easily cut through larger material
  • Sliding head provides maximum capacity for up to 13-1/4 in. cross cut
  • LED cutline indicator and work-light projects cut line and illuminates material to improve accuracy of the cut and visibility
  • Extended miter ranges from 47 degrees left and right to accommodate a wide variety of cuts
  • Miter stops located at the most common crown molding angles 0º, 15º, 22.5º, 31.6º, and 45º left and right for quick cut settings
  • Miter Detent override – quick action lever bypasses miter detent index points with one simple motion
  • Machined cast-in miter scale for accurate table alignment
  • Sliding miter fence provides support for wider material and easily adjusts for bevel cuts
  • 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
  • Horizontal “D” handle for improved comfort
  • Spindle lock for easy single wrench blade changes
  • Electric brake stops the blade in seconds
  • Motor: 120v - 60 Hz 15 Amp
  • Motor Speed: 3,800 r/min. (RPM)
  • Dust Port: 1-1/2 in.
  • Blade Arbor Hole: 1 in.
  • Blade Diameter: 12 in.
  • Cutting Capacities:
    • Baseboard Against Fence: 5-1/2 in.
    • Crown Molding Nested (45°/45°): 5-1/4 in.
    • Crown Molding Nested (52°/38°): 4-5/8 in.
    • 90° Cross Cut (nominal): 2 in. x 14 in. or 4 in. x 6 in.
    • 45° Miter Cut (nominal): 2 in. x 10 in.
    • Max Nominal Capacity at 90°: 4 in. x 14 in.
  • Weight: 45 lbs.
  • TSS121 Miter Saw with LED
  • 24-tooth Carbide Tipped Blade
  • Table extensions
  • Blade wrench
  • Dust bag
  • Work clamp
  • Operator’s manual.

Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
