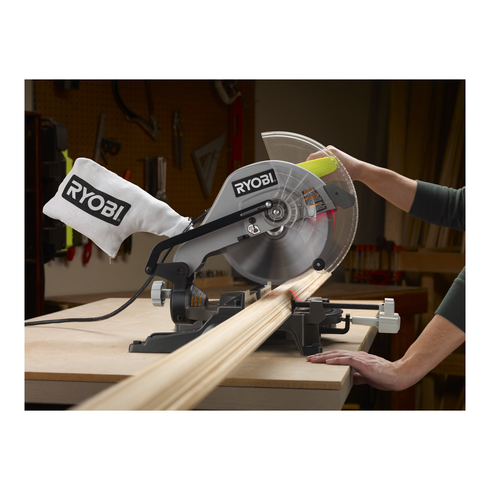

10 IN. Compound Miter Saw with Laser

Model: #TS1345L | Home Depot Sku #: 1000049776

The RYOBI 14 Amp 10 in. Compound Miter Saw is built around a heavy-duty motor that delivers up to 5,500 (no-load) RPM, making it great for a host of tough cutting applications. Its carbide-tipped blade changes with a single wrench, and a dual-view bevel scale helps provide a clear line of sight from either side. It mitres to 45 degrees left and right with stops at 0-, 15-, 22.5-, 31.6- and 45 degrees, and it is equipped with an electric brake that halts the blade in seconds for added safety. A horizontal D-handle improves comfort and control.


Product Videos

×
×
×
×
×
×
Features
Specs
Includes
Reviews
Manuals
Parts
  • Heavy duty 14 AMP Motor for a variety of cuts
  • Adjustable EXACTLINE® laser alignment system accurately aligns cut line with blade
  • Fixed laser runs on two (2) AAA batteries and switches on independent of the saw
  • 10" 24 tooth carbide-tipped blade
  • 9 ball detent stops at the most common miter cutting angles
  • Electric brake stops the blade in seconds
  • Machined cast-in miter scale for accurate table alignment
  • Horizontal “D” handle for improved comfort
  • Spindle lock for easy single wrench blade change
  • Motor: 120V ~ 60 Hz 14 Amps Motor Speed: 5,500 r/min. (RPM)
  • Dust Port: 1-1/4"
  • Blade Arbor: 5/8"
  • Blade Diameter: 10"
  • Baseboard against fence: 3-1/2"
  • Crown molding laying flat: 4-5/8" (Bevel 33.9º x Miter 31.6º)
  • 90º miter cut: 2" x 6" or 4" x 4"
  • 45º miter cut: 2" x 4"
  • 45º bevel cut: 2" x 6"
  • TS1344LG Compound Miter Saw with Laser and Carbide-tipped Blade
  • Blade Wrench
  • Dust Bag
  • Work Clamp
  • (2) AAA Batteries
  • Operator’s Manual

10 in. Compound Miter Saw - Model ts1345l


TS1345L_892_r_02.pdf
Published: 10-09-2015
Filesize: 548 KB


TS1345L_892_trilingual.pdf
Published: 06-05-2018
Filesize: 24.1 MB


Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the RYOBI master parts distributor at toll free 1-877-634-5704, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
