24V Cordless String Trimmer/Edger

Model: #RY24210A

Buy at The Home Depot
Large a5c4e8ed bd3f 4d5b a085 fb4ec5c8e549
Large 6f5ef894 d463 4f53 a999 1d6faa4098e5
Large ed48ae20 8dea 4dfa 97f5 3b513359bad3
Large 53217952 b8f4 460b a9fc b25b7b91271a
Large ccc1e462 dad8 48b3 bdaa 6f8814c10855
Large 509529f1 dc78 461a ab3e a1be6a8e57cf
Large 595f4fa6 8b14 41ac 8d23 ef817869e6f2
Large 7d2134e9 6a38 45ad b186 9bfd268b44c3
Large 9645d5a4 af62 438f 9ce5 b6d6fcd5a689
  • Tiny a5c4e8ed bd3f 4d5b a085 fb4ec5c8e549
  • Tiny 6f5ef894 d463 4f53 a999 1d6faa4098e5
  • Tiny ed48ae20 8dea 4dfa 97f5 3b513359bad3
  • Tiny 53217952 b8f4 460b a9fc b25b7b91271a
  • Tiny ccc1e462 dad8 48b3 bdaa 6f8814c10855
  • Tiny 509529f1 dc78 461a ab3e a1be6a8e57cf
  • Tiny 595f4fa6 8b14 41ac 8d23 ef817869e6f2
  • Tiny 7d2134e9 6a38 45ad b186 9bfd268b44c3
  • Tiny 9645d5a4 af62 438f 9ce5 b6d6fcd5a689

Tackle your yard chores with ease using the RYOBI 24V Li-ion Cordless String Trimmer/Edger. The 24V Trimmer’s 11-13 inch adjustable cut swath allows you to choose to trim longer or a cut a wider path and its variable speed trigger provides user control. Rid your lawn of weeds and unsightly tall grass with the RYOBI 24V Li-ion Cordless String Trimmer/Edger, backed by a RYOBI 3 year warranty.

  • share


Product Videos

×
Features
Specs
Includes
FAQ's
Manuals
Parts

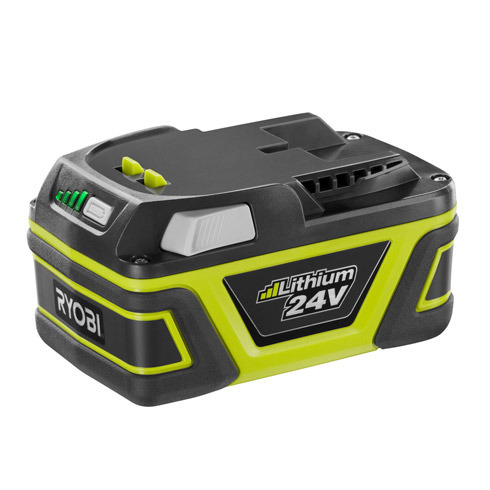

List 0a9e828c 83ad 475b b5c1 476fafb762eb

24V Lithium-ion Battery for Advanced Run Time

List 359caba7 9805 4588 92e6 e65d277a017d

Foot pedal adjustment converts pivoting head from trimmer to edger

List 6229ea0a 264a 40d9 8f95 0750301031d2

.065 in. single line

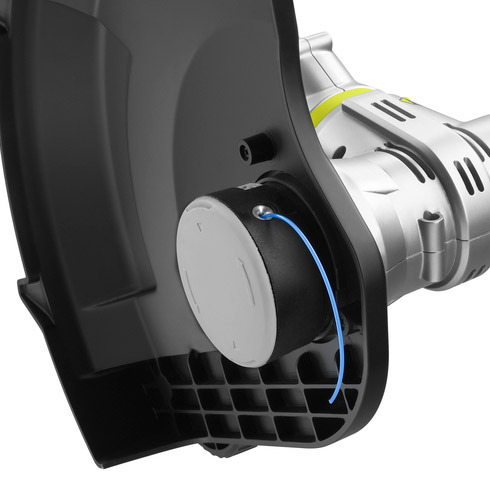

List a7e6417e 566a 4240 be62 2640a50fd78b

Auto feed string head for user control

List c007f635 f551 4dab 8618 632ee7c2bf88

Variable speed trigger allows more powerful cutting or longer battery life

List 5c37e26f a80a 42cf 8495 3e90e01f376d

11 – 13 in. adjustable cutting width for longer run time or wider cutting path

List 8e697df7 2ed6 4a16 b793 217b8ed48a9e

24V li-ion compact battery and 1 hour charger included

  • Motor: 24V Lithium-ion battery
  • Cutting Swath: Adjustable 11-13 inch cutting width
  • Shaft: Straight shaft pivoting trimmer head for edging
  • Yard Size: Up to 2/3 Acre
  • Line Advancement: Auto-Feed
  • Line: .065 in. line
  • Weight: 6.0 lbs.
  • 24V Power Head
  • String Trimmer/Edger Attachment
  • 24V Li-ion Battery
  • 24V Charger
  • Grass Deflector
  • Operator’s Manual

How do I advance the line on my RYOBI Cordless String Trimmer?

NOTE: Your RYOBI Cordless String Trimmer is equipped with an auto-feed head. Bumping the head to try to advance the line will damage the trimmer and void the warranty.

  • With the trimmer running, release the switch trigger.
  • Wait two seconds, and press the switch trigger again.

NOTE: The line will extend approximately ¼ in. with each stop and start of the switch trigger until the line reaches the length of the cut-off blade.

  • Resume trimming.

How do I attach the grass deflector on my RYOBI Cordless String Trimmer?

  • Remove the battery.
  • Remove the plastic hardware bag from the grass deflector.
  • Fit the grass deflector over the string head.
  • Line up the screw holes in the grass deflector with the holes in the motor housing.
  • Install supplied screws and tighten by turning clockwise with a phillips screwdriver.

How do I manually advance the line on my RYOBI Cordless String Trimmer?

  • Remove the battery.
  • Push the black button located on the string head while pulling on the line to manually advance the line.

How do I replace the spool on my RYOBI Cordless String Trimmer?

NOTE: Use only .065 in. round or .080 in. twisted monofilament line.

  • Remove the battery pack.
  • Push in tabs on side of spool retainer.
  • Pull spool retainer up to remove.
  • Remove the old spool.
  • To install the new spool, make sure the line is captured in the slot on the new spool. Make sure the end of the line is extended approximately 5 in. beyond the slot.
  • Install the new spool so that the line and slot align with the eyelet in the string head. Thread the line into the eyelet.
  • Pull the line extending from the string head so the line releases from the slot in the spool. Reinstall the spool retainer by dressing tabs into slots and pushing down until spool retainer clicks into place.

How do I start and stop my RYOBI Cordless String Trimmer?

To Start:

  • Press and hold the lock-out button.
  • Depress the switch trigger

To Stop:

  • Release the switch trigger to stop the string trimmer.
  • Upon release of the switch trigger, the lock-out button will automatically reset to the locked position.

How do I switch from trimming to edging on my RYOBI 24V or 40V String Trimmer?

  • Remove the battery pack.
  • Step down on the foot pedal.
  • Rotate the trimmer head counterclockwise placing the tool in the edger position.

What do I do if my RYOBI Cordless String Trimmer won’t start?

Possible Cause—Battery is not secure

  • To secure the battery pack, make sure the e battery pack is snapped into place.

Possible Cause—Battery is not charged:

  • Charge the battery pack according to the instructions included with your battery.

What is the best way to cut weeds and grass using my string trimmer?

  • Keep your string trimmer tilted toward the area being cut
  • Pass the unit from left to right (if using a curved shaft string trimmer) and from right to left (if using a straight shaft string trimmer). By following these directional cutting paths, you will avoid having debris and grass clippings from being directed back at yourself.
  • Use the top of the line to do the cutting. Do not force the string head into uncut grass; this could cause the trimmer to bog down.
  • Avoid trees, shrubs wire and picket fences.

How do I attach the front handle on my RYOBI 40V-X String Trimmer?

  • Loosen and remove the wing bolt and washer from the handle.
  • Install the handle on the power head shaft.
  • Adjust handle up or down, if necessary, to desired operation position.
  • Reinstall the washer and wing bolt. Tighten wing bolt to secure.

How do I replace the line on my RYOBI Cordless String Trimmer?

  • Remove the battery pack.
  • Remove the spool from the string head.
  • NOTE: Remove any old line remaining on the spool.
  • Cut a piece of line approximately 9 ft. long. Use only .065 in. round or .080 in. twisted monofilament line.
  • Insert the line into the anchor hole in the upper part of the spool. Wind the line around the supper part of the spool clockwise, as shown by the arrows on the spool. Place line in the slot on upper spool flange, leaving about 6 in. extended beyond the slot. Do not overfill. After winding the line, there should be at least ¼ in. between the wound line and the outside edge of the spool.
  • Replace the plastic retainer spool and the spool cap.

How do I store my RYOBI Cordless String Trimmer?

  • Remove the battery from the string trimmer before storing.
  • Clean all foreign material from the trimmer.
  • Store the unit in a place that is inaccessible to children and away from corrosive agents such as garden chemicals and de-icing salts.

RYOBI 24V String Trimmer/Edger - Model RY24210A


Ry24001 ry24021 214 trilingual 01
RY24001_RY24021_214_trilingual_01.pdf
Published: 05-05-2014
Filesize: 4.29 MB

Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
