18V ONE+™ MITER SAW KIT

Model: #P552K

Buy at The Home Depot
Large bde8008f d57b 47a9 b4eb bb7946f125ed
Large bec1f6d2 af62 4d3a 9aff d43acaedf3d8
Large b7868158 ca20 4aff 8870 834b459b558f
Large 0744ac96 38bb 4a9d 8306 23a34e0d36f3
Large 5cae67b9 c188 4b4d 8031 f0f74f2cd156
Large 551084d1 9366 4c73 a2b9 0c764fb114cb
  • Tiny bde8008f d57b 47a9 b4eb bb7946f125ed
  • Tiny bec1f6d2 af62 4d3a 9aff d43acaedf3d8
  • Tiny b7868158 ca20 4aff 8870 834b459b558f
  • Tiny 0744ac96 38bb 4a9d 8306 23a34e0d36f3
  • Tiny 5cae67b9 c188 4b4d 8031 f0f74f2cd156
  • Tiny 551084d1 9366 4c73 a2b9 0c764fb114cb

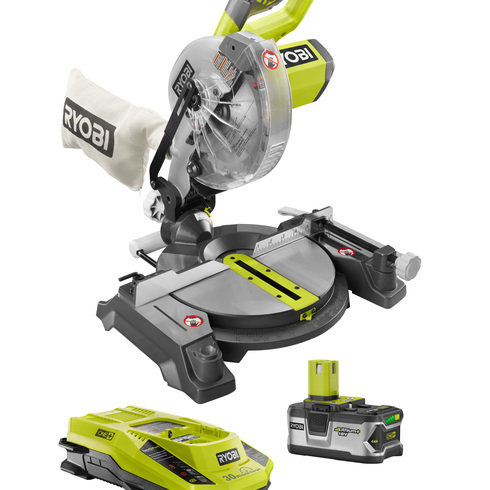

Introducing the new and improved RYOBI 18V ONE+™ Miter Saw Kit while supplies last. This kit features the new P552K 18V ONE+™ Miter Saw, P108 Lithium+™ High-Capacity Battery, and P117 Dual Chemisty Charger. The saw is compact and lightweight design which is great for moving it jobsite to jobsite, or for any DIY projects around your home. It’s 2x4 cutting capacity and 4 ¼” cross cut capacity make it a great tool for your small projects. With an adjustable 0-45 degree bevel, you are not limited to one cut.

Features
Specs
Manuals
Parts
List cd293f9a 0e5a 4340 9384 b829fc157143

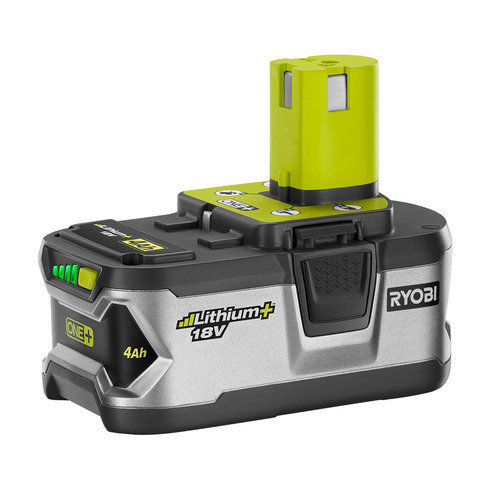

P108 ONE+™ LITHIUM+™ HIGH CAPACITY BATTERY
  • Up to 4X runtime
  • Improves performance by up to 35%
  • On-board Fuel Gauge
List 67563673 d910 41ea 9067 621b59a52b8c

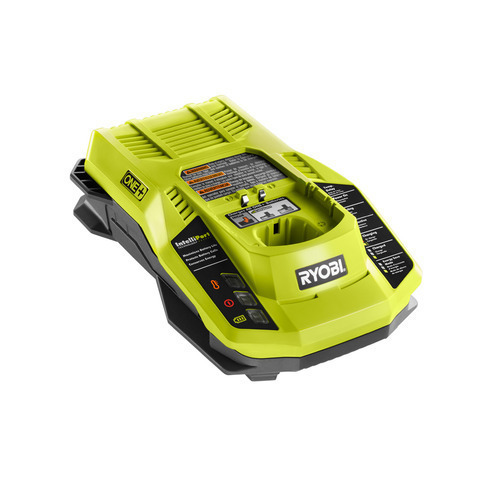

P117 18V DUAL CHEMISTRY BATTERY CHARGER
  • Dual Chemistry charges all ONE+™ Batteries in as little as 30 minutes
  • Indicator Light shows status as batteries are charged
  • Temperature LED indicates when battery is too hot or too cold
  • Energy Save Mode – conserves energy when not charging or maintaining battery
List 7c142dcc 59bd 42a8 a83e c36138c6d27f
Features
  • Extremely compact and lightweight
  • Up to 2 x 4 cutting capacities and 4-1/4" cross cut capacity
  • Built-in, 9 ball detent stops at the most common miter cutting angles
  • 24-tooth, carbide-tipped blade for fast, clean cuts
  • Ergonomically designed horizontal D-handle
  • Spindle lock for easy single wrench blade changes
  • EXACTLINE adjustable laser alignment system accurately aligns cut line with blade
  • Compatible with any RYOBI ONE+™ 18V Battery
  • Battery: 18V
  • Motor Speed: 4,000 RPM
  • Dust Port: 1-1/4”
  • Blade Arbor: 5/8”
  • Blade Diameter: 7-1/4”
  • Weight: 15lbs
  • Cutting Capacities:
    • Baseboard laying flat: 4-1/4”
    • 90 degree miter cut: 1-1/2” x 4-1/4”
    • 45 degree miter cut: 1-1/2” x 3”

7-1/4 in. (254 mm) Cordless Compound Miter Saw - Model p552


P552 873 trilingual
P552_873_trilingual.pdf
Published: 09-16-2016
Filesize: 31.3 MB


Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
