Straight Shaft Trimmer Attachment

Model: #RY15523 | Home Depot Sku #: 811169

Buy at The Home Depot
Large d9f8d217 d097 4e64 8b53 091de056839a
Large 261b867e d72f 4f1a 9a46 acf048d5065b
Large 8c5f4d9a 8d3c 4faf a2c7 f67985aa0f54
  • Tiny d9f8d217 d097 4e64 8b53 091de056839a
  • Tiny 261b867e d72f 4f1a 9a46 acf048d5065b
  • Tiny 8c5f4d9a 8d3c 4faf a2c7 f67985aa0f54
Straight Shaft Trimmer Attachment is rated 4.75 out of 5 by 16.
Rated 5 out of 5 by from Works well with both the string and the blade Works well with both the string and the blade trimmer attachment. Love that it works off the batteries.
Date published: 2016-04-28
Rated 5 out of 5 by from works as good as a gas weedeater Great product and superior customer service. Will buy again!!
Date published: 2016-09-01
Rated 5 out of 5 by from reliablility plus Hands-down, the best string trimmer I've ever owned, and I've owned quite a few.
Date published: 2016-04-29
Rated 5 out of 5 by from Works great I bought this last fall and what little time I used it, worked great.
Date published: 2016-04-18
Rated 4 out of 5 by from More power than I thought Only used a few times so far but it seems to be worth its value.
Date published: 2016-04-18
Rated 4 out of 5 by from great warranty I bought this last summer and it's doing a pretty decent job
Date published: 2016-04-29
Rated 5 out of 5 by from Works great Bought as accessory for trimmer, edger for convenience.
Date published: 2016-04-28
Rated 5 out of 5 by from BIG QUALITY, LOW PRICE I PURCHASED OVER A YEAR AGO, VERY IMPRESSED WITH UNIT
Date published: 2016-04-18
  • 2016-09-08T06:18CST
  • bvseo_cps, prod_bvrr, vn_cps_3.3.0
  • cp_2, bvpage2n
  • co_hasreviews, tv_0, tr_16
  • loc_en_US, sid_100234564, PRD, sort_relevancy
  • clientName_RYOBIOutdoorTools

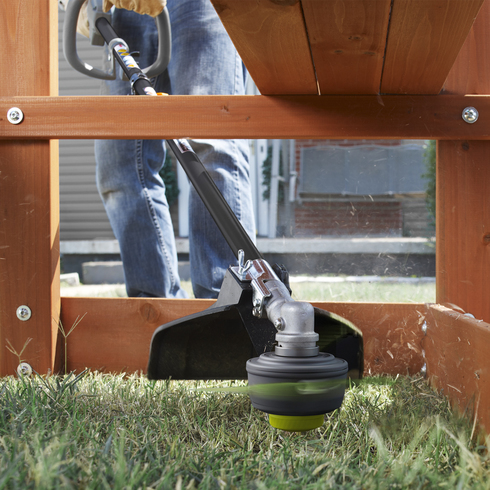

The RYOBI Expand-It™ Straight Shaft String Trimmer Attachment works with any of the RYOBI power heads. Whether you prefer 2 Cycle or 4 Cycle gas, cordless or electric power, quickly attach the straight shaft trimmer to the bottom of your power head. The Straight Shaft attachment, backed by a RYOBI 3 year warranty, is perfect for trimming under benches and shrubs, around obstacles, and in hard to reach places. Save time, save money, save space.


Product Videos

×
×
Features
Specs
Includes
Reviews
FAQ's
Manuals
Parts
List 0c415aef c812 4588 a703 e66e16fd3edc

18 in. cutting width with .080 in. dual line

Universal Brand Fit

Straight shaft for extended reach

Includes bump feed string head

Requires no tools or adapters

*Powerhead sold separately*

  • Cutting Path: 18 in cutting swath
  • String Diameter: .080 in. dual line Weight: 3.5 lbs.
  • Line Advancement: Bump Feed
  • Attachment Coupler: universal attachment coupler
  • Straight Shaft String Trimmer
  • Attachment Securing Cap
  • Operator’s Manual

How do I advance the line on my REEL-EASY™ String Head?

Line advance is controlled by tapping the string trimmer head on grass while running engine at full throttle

  • Run the engine at full throttle
  • Tap the knob on ground to advance line. The line advances each time the knob is tapped. Do not hold the knob on the ground

NOTE: The line trimming cut-off blade on the grass deflector will cut the line to the correct length

NOTE: If the line is worn too short, you may not be able to advance the string by tapping it on the ground. If so, stop the engine and manually advance the line.

How do I install my attachment to my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if using a RYOBI Gas Power Head); remove the battery (if using the RYOBI 40V Power Head).
  • Loosen the knob on the coupler of the power head shaft and remove the end cap from the attachment (black rubber piece with loop hole for hanging).
  • Push in the silver button located on the attachment shaft. Align the button with the guide recess on the Power Head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole.

NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.

  • Tighten the knob securely.

How do I manually advance the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will not be harmed
  • Push the knob in while pulling on line(s) to manually advance the line

How do I remove the attachment from my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if a gas unit), remove the battery (if using RYOBI 40V Power Head)
  • Loosen the knob at the connection point
  • Push in the button and twist the shafts to remove and separate the Power Head from the Attachment

How do I replace the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will be safe while replacing the line.
  • Rotate the spool clockwise as necessary to align the arrows on the spool.
  • Cut one piece of trimmer line at approx. 20ft. in length. Insert the line in the eyelet on the string trimmer housing. Push until the end of the line comes out the opposite side of the string head. Pull the line from the other side until equal amounts of line are on both sides of the spool.
  • Rotate the spool clockwise to wind the line on the spool until approx. 6 in. of line is showing on each side.
  • Push the spool retainer down while pulling on line(s) to manually advance line and to check for proper assembly of the on the string head.

What is the best way to cut weeds and grass using my string trimmer?

  • Keep your string trimmer tilted toward the area being cut
  • Pass the unit from left to right (if using a curved shaft string trimmer) and from right to left (if using a straight shaft string trimmer). By following these directional cutting paths, you will avoid having debris and grass clippings from being directed back at yourself.
  • Use the top of the line to do the cutting. Do not force the string head into uncut grass; this could cause the trimmer to bog down.
  • Avoid trees, shrubs wire and picket fences.

Expand-It Straight Shaft Trimmer Attachment - Model RY15523A


Ry15523a 799 trilingual 03
RY15523A_799_trilingual_03.pdf
Published: 04-25-2014
Filesize: 1.83 MB

Ry15523a 799 r 01
RY15523A_799_r_01.pdf
Published: 04-11-2014
Filesize: 203 KB

Straight Shaft Trimmer Attachment - Model RY15523


Ry15523 484 trilingual 04
RY15523_484_trilingual_04.pdf
Published: 07-20-2012
Filesize: 2.13 MB

Click the link below to access outdoor products replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4110, and place your order over the phone.

Visit Ryobi Outdoor Parts Store
